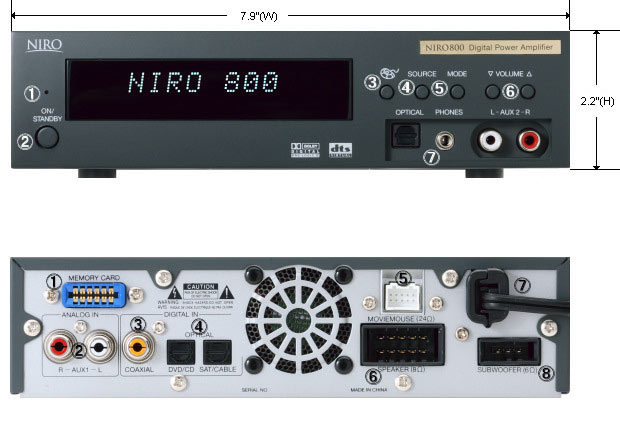

Front 1. Standby indicator 2. Power 3. MovieMouse on/off 4. Input Source 5. Display/Listening Mode Setting 6. Volume Control 7. Headphone Output |
Rear 1. Memory Card Connector Terminal 2. Analog Input Terminal-TV Sound 3. Coaxial Input Terminal 4. Optical Input Terminal-DVD/CD/Cable/Satellite 5. MovieMouse Connector Terminal 6. Satellite Speaker Connector Terminal 7. Power Cable 8. Subwoofer Connector Terminal |
The ultra-compact Digital Power Amplifier is highly efficient, with a
power rating of 30 watts per each of the five main channels plus 50
watts for the subwoofer; a total output of 200 watts. The cooling fan
features variable speeds, spinning quietly at low volumes and running
full during higher listening levels. Working with the NIRO 800
Subwoofer, it generates powerful, low distortion performance, worthy of
any high-end audio system.
Amplifier Type: Fully digital 6-channel amplifier
Power Output: 30W x 5 for main channels, 50W x 1 for subwoofer
Supported Audio Formats: Dolby Digital, DTS, Dolby Pro Logic II
Input Terminals: 4 digital (3 optical, 1 coaxial), 2 analog
Output Terminals: 8? main speaker, 24? MovieMouse speaker, 6? subwoofer,
16-50? headphone (32? recommended)
Dimensions: 7.9(W) x 2.2(H) x 11.7(D) in.
Weight: 4 lb. 13 oz.
Power Requirement: 120V AC, 60Hz
Amplifier Type: Fully digital 6-channel amplifier
Power Output: 30W x 5 for main channels, 50W x 1 for subwoofer
Supported Audio Formats: Dolby Digital, DTS, Dolby Pro Logic II
Input Terminals: 4 digital (3 optical, 1 coaxial), 2 analog
Output Terminals: 8? main speaker, 24? MovieMouse speaker, 6? subwoofer,
16-50? headphone (32? recommended)
Dimensions: 7.9(W) x 2.2(H) x 11.7(D) in.
Weight: 4 lb. 13 oz.
Power Requirement: 120V AC, 60Hz
