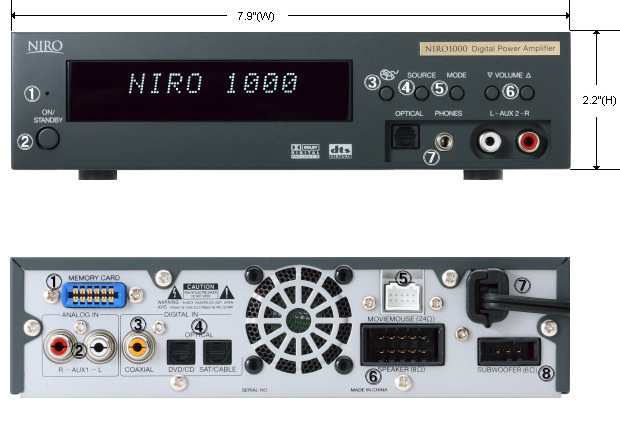

Front 1. Standby indicator 2. Power 3. MovieMouse on/off 4. Input Source 5. Display/Listening Mode Setting 6. Volume Control 7. Headphone Output |
Rear 1. Memory Card Connector Terminal 2. Analog Input Terminal-TV Sound 3. Coaxial Input Terminal 4. Optical Input Terminal-DVD/CD/Cable/Satellite 5. MovieMouse Connector Terminal 6. Satellite Speaker Connector Terminal 7. Power Cable 8. Subwoofer Connector Terminal |
l This mini-sized Digital Power Amplifier is highly efficient, with a
power rating of 30 watts per each of the five channels for a total
output of 150 watts. It is able to dedicate full power to the main
speaker when used with our subwoofer amp, thus lowering distortion and
maintaining sound accuracy even during maximum power output.
The cooling fan features variable speed, working quietly at low volume and operating at full speed at higher listening levels. With the NIRO 1000 Subwoofer, it produces powerful, low distortion high end audio performance.
Amplifier Type: Fully digital 6-channel amplifier
Power Output: 30W x 5 for main channels
Supported Audio Formats: Dolby Digital, DTS, Dolby Pro Logic II
Input Terminals: 4 digital (3 optical, 1 coaxial), 2 analog
Output Terminals: 8Ω main speaker, 24Ω MovieMouse speaker, 6Ω subwoofer,
16-50Ω headphone (32Ω recommended)
Dimensions: 7.9(W) x 2.2(H) x 11.7(D) in.
Weight: 4 lb. 13 oz.
Power Requirement: 120V AC, 60Hz
The cooling fan features variable speed, working quietly at low volume and operating at full speed at higher listening levels. With the NIRO 1000 Subwoofer, it produces powerful, low distortion high end audio performance.
Amplifier Type: Fully digital 6-channel amplifier
Power Output: 30W x 5 for main channels
Supported Audio Formats: Dolby Digital, DTS, Dolby Pro Logic II
Input Terminals: 4 digital (3 optical, 1 coaxial), 2 analog
Output Terminals: 8Ω main speaker, 24Ω MovieMouse speaker, 6Ω subwoofer,
16-50Ω headphone (32Ω recommended)
Dimensions: 7.9(W) x 2.2(H) x 11.7(D) in.
Weight: 4 lb. 13 oz.
Power Requirement: 120V AC, 60Hz
